ORBBEC

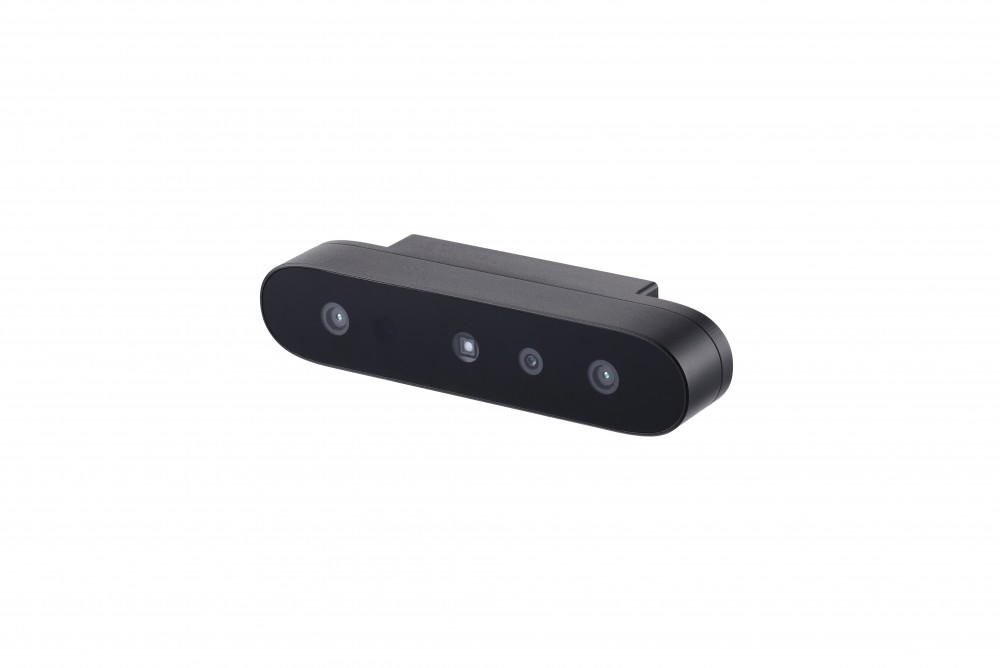

Gemini215
Gemini 215, a new addition to ORBBEC’s stereo vision Gemini series, is specifically designed for high-precision short-range detailed 3D scanning applications such as body part and object scanning. Powered by ORBBEC’s custom ASIC MX6600 and a high-performance optical system, the Gemini 215 excels in short-range indoor scanining, delivering accurate and real-time depth images with fine details.
Stereo Structured light 3D Depth Camera
• Active
stereo, reliable
indoor scanning even in textureless
scenes
•
On-chip depth processing
•
Excellent depth accuracy < 0.5mm at 300mm
•
Short-range depth 15cm~70cm
•
Real-time depth processing up to 30 fps
•
Minimum point distance/resolution 0.16mm
•
Multi-device sync support for broader field of view
