Astra Mini Pro

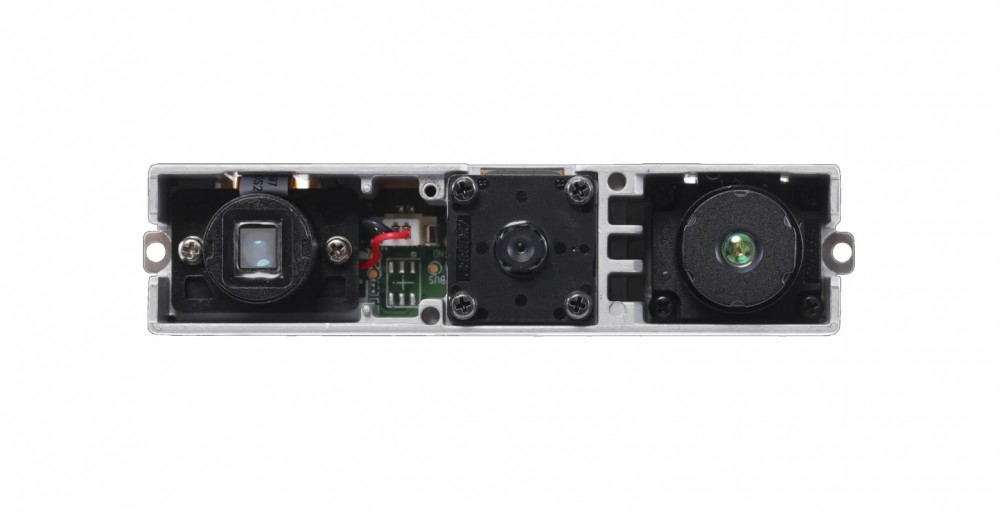

Astra Mini Pro is a 3D camera based on structured light technology. As an iterative upgrade product of Astra Mini, Astra Mini Pro is equipped with MX6000 self-developed depth sensing chip, which can provide customers with high-precision depth data within the range of 0.6m~6m depth measurement.
It supports up to 1280x1024 depth image, with multi-resolution D2C function, which can bewidely used in robot obstacle avoidance, volume measurement, game and entertainment and other application scenarios.
Structured Light 3D Depth Camera

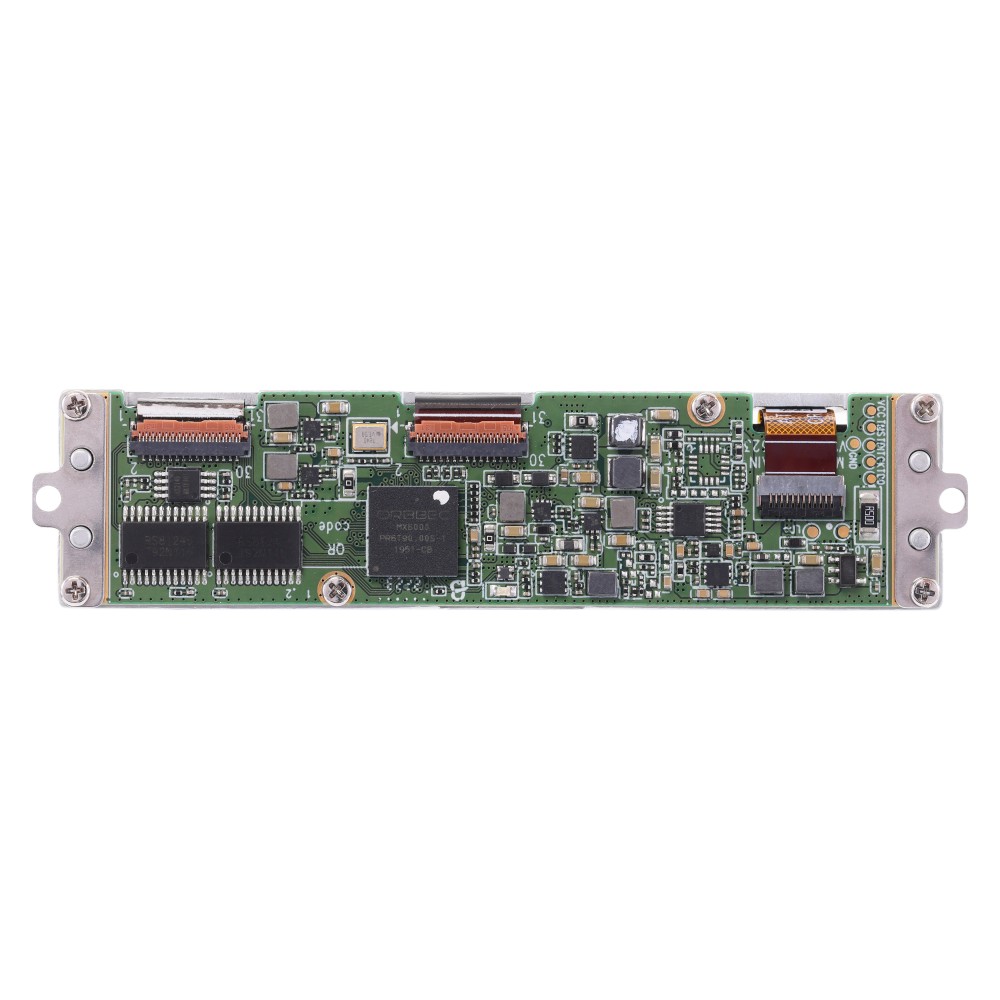

- ORBBEC Depth computing processor MX6000
- Depth image : up to 12801024 resolution @7 fps
- RGB image : up to 1280960 resolution @7 fps
- Support the D2C function at multiple resolution
- High quality depth output：3mm @1m relative accuracy
- Working distance：0.6m~6m
- Interface：USB 2.0
- Minimal size : easy for multi-scene integration
