ORBBEC

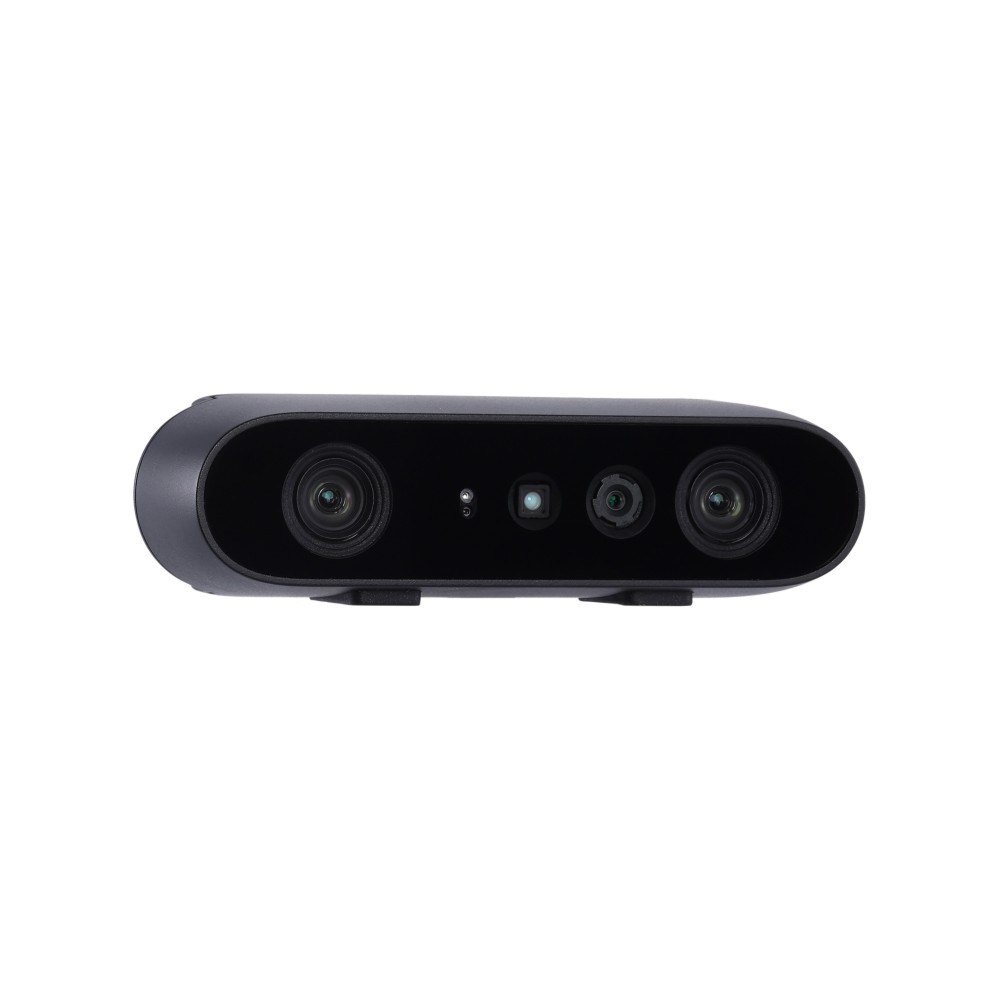

Gemini 2
ORBBEC Gemini 2 is a new generation of 3D camera products based on stereo structure light, equipped with the new MX6600 depth chip of Orbbec, greatly improving the depth image FOV, horizontal reaching 90°and diagonal over 100°. High-quality depth images of objects can be collected within the 0.15m-10m depth measurement range, supported by the point ranging function brought by the camera, non-blind area depth data collection within 0-10m range can be realized.
The camera also Provide six-axis IMU / inertial sensing data and high-quality RGB images, while supporting high-efficiency hardware D2C on the camera side and high-precision software on the upper camera side D2C function, provide a variety of depth working modes, adapt to different application scenarios.
In addition, the camera provide flexible and rich frame synchronization and multi-machine synchronization functions, and support with a cross-platform development toolkit-ORBBEC SDK.
Stereo Structured light 3D Depth Camera
- Depth measurement range : 0.15m~10m
- Diagonal FOV greater than 100°, high precision depth measurement
- The active stereo structure light is supplemented by dot ToF to achieve the non - blind spot depth measurement in the range of 0~10m
- The camera hardware comes with D2C function a t multi-resolution
- High-precision resolution depth and RGB frame synchronization and multi-machine synchronization function, to realize multi-machine combination linkage
- Built-in 6-axis IMU sensor
- Any frequency passive trigger for the acquisition depth and RGB image
