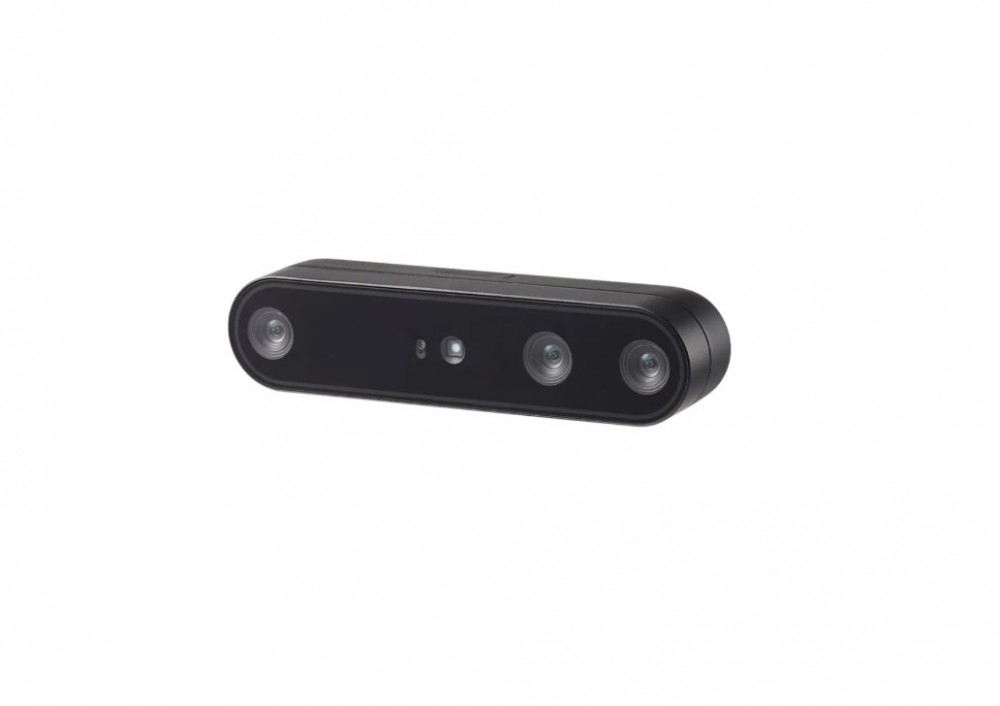

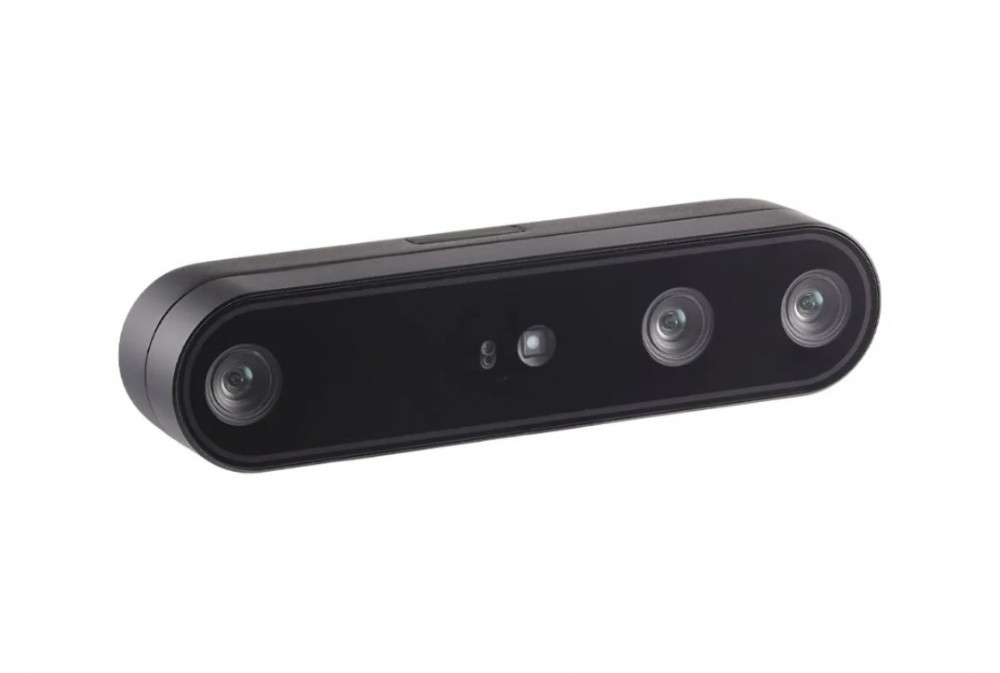

ORBBEC Gemini 2L is based on active stereo IR technology with a baseline of 100mm and is equipped with ORBBEC’s latest custom ASIC for high quality depth processing. It has a depth Field of View(FoV) of up to 101°diaonally and operates with single cable USB 3.0 for powr and connectivity. The camera also has a proximity sensor for close distance single point ranging, which eliminates and blind spot in depth measurements within the entire 0-10m range. An internal IMU enables motion and position tracking.

Gemini 2L is easy to set up and operate with the ORBBEC SDK, and the camera delivers extremely accurate and reliable data in various lighting conditions form pitch black to semi-outdoor.

Stereo Structured light 3D Depth Camera
